Microphone V2

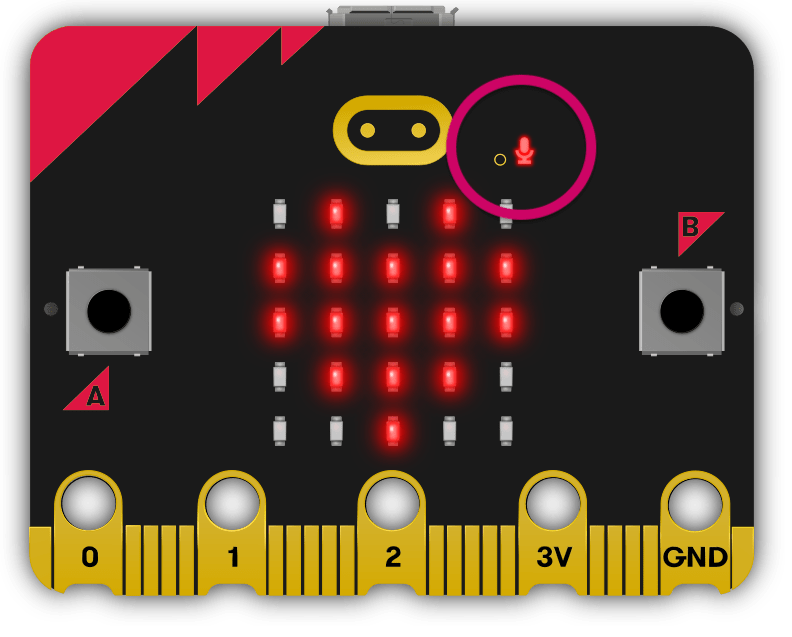

This object lets you access the built-in microphone available on the micro:bit V2. It can be used to record and respond to sound. The microphone input is located on the front of the board alongside a microphone activity LED, which is lit when the microphone is in use.

Sound events

The microphone can respond to a pre-defined set of sound events that are based on the amplitude and wavelength of the sound.

These sound events are represented by instances of the SoundEvent class, accessible via variables in microbit.SoundEvent:

microbit.SoundEvent.QUIET: Represents the transition of sound events, from loud to quiet like speaking or background music.
microbit.SoundEvent.LOUD: Represents the transition of sound events, from quiet to loud like clapping or shouting.

Recording

The microphone can record audio into an AudioRecording, which can then be played with the audio.play() function.

Audio sampling is the process of converting sound into a digital format. To do this, the microphone takes samples of the sound waves at regular intervals. The number of samples recorded per second is known as the “sampling rate”, so recording at a higher sampling rate increases the sound quality, but as more samples are saved, it also consumes more memory.

The microphone sampling rate can be configured during sound recording via the AudioRecording.set_rate() or AudioTrack.set_rate() methods.

At the other side, the audio playback sampling rate indicates how many samples are played per second. So if audio is played back with a higher sampling rate than the rate used during recording, then the audio will sound speeded up. If the playback sampling rate is twice the recording rate, the sound will take half the time to be played to completion. Similarly, if the playback rate is halved, it will play half as many samples per second, so it will take twice as long to play the same amount of samples, and it will sound slowed down.

How do you think a voice recording will sound if the playback rate is increased or decreased? Let’s try it out!:

from microbit import *

while True:
    if pin_logo.is_touched():
        # Record and play back at the same rate
        my_recording = microphone.record(duration=3000)
        audio.play(my_recording)

    if button_a.is_pressed():
        # Play back at half the sampling rate
        my_recording = microphone.record(duration=3000)
        my_recording.set_rate(my_recording.get_rate() // 2)
        audio.play(my_recording)

    if button_b.is_pressed():
        # Play back at twice the sampling rate
        my_recording = microphone.record(duration=3000)
        my_recording.set_rate(my_recording.get_rate() * 2)
        audio.play(my_recording)

    sleep(200)

Functions

microbit.microphone.current_event()

Get the last recorded sound event.

Returns:: The event, SoundEvent('loud') or SoundEvent('quiet').

microbit.microphone.was_event(event)

Check if a sound was heard at least once since the last call.

This call clears the sound history before returning.

Parameters:: event – The event to check for, such as SoundEvent.LOUD or SoundEvent.QUIET.
Returns:: True if sound was heard at least once since the last call, otherwise False.

microbit.microphone.is_event(event)

Check the most recent sound event detected.

This call does not clear the sound event history.

Parameters:: event – The event to check for, such as SoundEvent.LOUD or SoundEvent.QUIET
Returns:: True if sound was the most recent heard, False otherwise.

microbit.microphone.get_events()

Get the sound event history as a tuple.

This call clears the sound history before returning.

Returns:: A tuple of the event history with the most recent event last.

microbit.microphone.set_threshold(event, value)

Set the threshold for a sound event.

The SoundEvent.LOUD event will be triggered when the sound level crosses this threshold upwards (from “quiet” to “loud”), and SoundEvent.QUIET event is triggered when crossing the threshold downwards (from “loud” to “quiet”).

If the SoundEvent.LOUD value set is lower than SoundEvent.QUIET, then “quiet” threshold will be decreased to one unit below the “loud” threshold. If the SoundEvent.QUIET value is set higher than SoundEvent.LOUD, then the “loud” threshold will be set one unit above.

Parameters:

event – A sound event, such as SoundEvent.LOUD or SoundEvent.QUIET.
value – The threshold level in the range 0-255. Values outside this range will be clamped.

microbit.microphone.sound_level()

Get the sound pressure level.

Returns:: A representation of the sound pressure level in the range 0 to 255.

microbit.microphone.record(duration, rate=7812)

Record sound into an AudioRecording for the amount of time indicated by duration at the sampling rate indicated by rate.

The amount of memory consumed is directly related to the length of the recording and the sampling rate. The higher these values, the more memory it will use.

A lower sampling rate will reduce both memory consumption and sound quality.

If there isn’t enough memory available a MemoryError will be raised.

Parameters:

duration – How long to record in milliseconds.
rate – Number of samples to capture per second.

Returns:

An AudioRecording with the sound samples.

microbit.microphone.record_into(buffer, wait=True)

Record sound into an existing AudioRecording or AudioTrack until it is filled, or the stop_recording() function is called.

This function also returns an AudioTrack created from the provided input buffer, which length matches the recording duration. This is useful when recording with wait set to False, and the recording is stopped before the input buffer is filled.

Parameters:

buffer – AudioRecording or AudioTrack to record sound into.
wait – When set to True it blocks until the recording is done, if it is set to False it will run in the background.

Returns:

An AudioTrack which ends where the recording ended.

microbit.microphone.is_recording()

Returns:: True if the microphone is currently recording sound, or False otherwise.

microbit.microphone.stop_recording(): Stops a recording running in the background.

microbit.microphone.set_sensitivity(gain)

Configure the microphone sensitivity to one of these three levels: microphone.SENSITIVITY_LOW, microphone.SENSITIVITY_MEDIUM, microphone.SENSITIVITY_HIGH.

These constants correspond to a number, and any values between these constants are valid arguments.

Parameters:: gain – Microphone gain.

Examples

An example that runs through some of the functions of the microphone Sound Events API:

# Basic test for microphone.  This test should update the display when
# Button A is pressed and a loud or quiet sound *is* heard, printing the
# results. On Button B this test should update the display when a loud or
# quiet sound *was* heard, printing the results. On shake this should print
# the last sounds heard, you should try this test whilst making a loud sound
# and a quiet one before you shake.

from microbit import *

display.clear()
sound = microphone.current_event()

while True:
    if button_a.is_pressed():
        if microphone.current_event() == SoundEvent.LOUD:
            display.show(Image.SQUARE)
            uart.write('isLoud\n')
        elif microphone.current_event() == SoundEvent.QUIET:
            display.show(Image.SQUARE_SMALL)
            uart.write('isQuiet\n')
        sleep(500)
    display.clear()
    if button_b.is_pressed():
        if microphone.was_event(SoundEvent.LOUD):
            display.show(Image.SQUARE)
            uart.write('wasLoud\n')
        elif microphone.was_event(SoundEvent.QUIET):
            display.show(Image.SQUARE_SMALL)
            uart.write('wasQuiet\n')
        else:
            display.clear()
        sleep(500)
    display.clear()
    if accelerometer.was_gesture('shake'):
        sounds = microphone.get_events()
        soundLevel = microphone.sound_level()
        print(soundLevel)
        for sound in sounds:
            if sound == SoundEvent.LOUD:
                display.show(Image.SQUARE)
            elif sound == SoundEvent.QUIET:
                display.show(Image.SQUARE_SMALL)
            else:
                display.clear()
            print(sound)
            sleep(500)

An example of recording and playback with a display animation:

from microbit import *

mouth_open = Image(
    "09090:"
    "00000:"
    "09990:"
    "90009:"
    "09990"
)
mouth_closed = Image(
    "09090:"
    "00000:"
    "00000:"
    "99999:"
    "00000"
)

RECORDING_RATE = 7812   # The default sample rate
my_recording = audio.AudioRecording(duration=5000, rate=RECORDING_RATE)

while True:
    if button_a.is_pressed():
        clipped_recording = microphone.record_into(my_recording, wait=False)
        display.show([mouth_open, mouth_closed], loop=True, wait=False, delay=150)
        while button_a.is_pressed() and microphone.is_recording():
            sleep(50)
        microphone.stop_recording()
        display.clear()
    if button_b.is_pressed():
        audio.play(clipped_recording, wait=False)
        while audio.is_playing():
            clipped_recording.set_rate(scale(
                accelerometer.get_x(),
                (-1000, 1000),
                (RECORDING_RATE // 2, RECORDING_RATE * 2)
            ))
            sleep(50)
    sleep(100)
